The choice of the appropriate filter element is a key factor in achieving the required degree of filtration and optimal performance. To house these elements there is a great diversity of casings.

The Unipack series comprises a rational and proven solution in hundreds of installations that allows strict contamination control with maximum efficiency and simplicity. This set of housings and cartridges has been designed to operate with low flow rates, ensuring maximum filtration efficiency.

When fluids have a high solids content or when an extended service life is required without changing the filter elements it is necessary to use a device that contains a high number of filter elements.

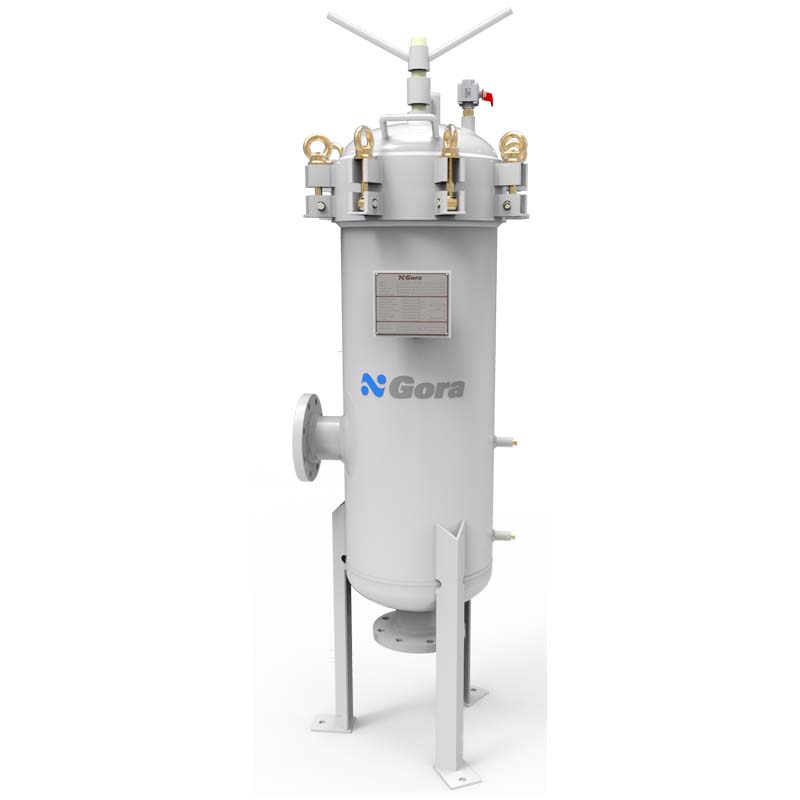

Dynapack multicartridge filters in their multiple varieties are characterized by the extensive filtering surface and consequently by the extended operating autonomy.

The range of cartridges available for these families is one of the widest because it covers an extensive range of porosities and ranges from 6,300 micron perforated plate filter elements to membrane filters capable of retaining particles of 0.1 microns.

• Standard and custom designs.
• Filter type: Cartridge filter.
• Materials: Carbon steel / stainless steel / special alloys / polypropylene.
• Connections: Flanged / Threaded.
• Series: ANSI # 150 to # 900.
• Closure: Quick / Swing bolted.
• Optional: Instrumentation / Insulation / Tracing / ASME stamp.

• Robust yet simple construction for trouble-free operation.
• Quick and easy disassembly and maintenance. Filter elements can be replaced within a few minutes with a single key.
• Wide chemical and mechanical compatibility with the most varied working conditions in fixed or mobile services.
• Low initial cost and, more importantly, a reduced operating cost.
• Ability to modify the micron rate or type of cartridge material without the need to replace the housing.
