Dust & Liquid Separators

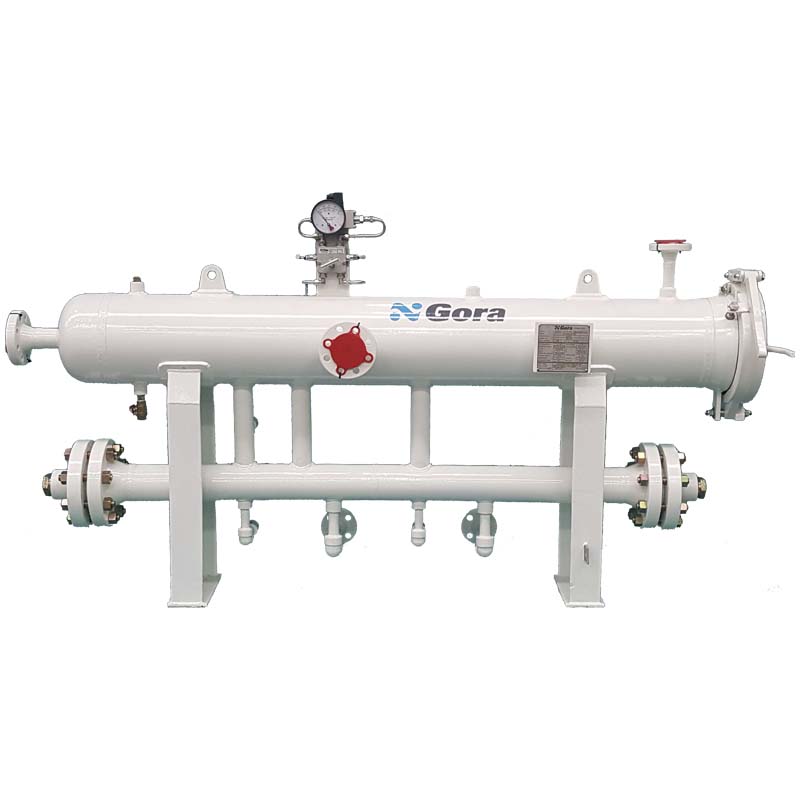

The Dynapack GAPL family refers to the dust and liquid separators developed for natural gas treatment. Installed in gas pipelines, measurement and regulation stations and refineries, among others, they are the best option when the removal of solid and liquid particles in a single application is required.

These separators are composed of two stages for the treatment of the fluid: in the first stage the solids are retained and in the second stage the liquid is separated from the gas. Various combinations of filter candles and droplet separators allow separation of up to 1 micron in solids and liquids.

Vertical and horizontal configurations available without compromising separation efficiency.

CHARACTERISTICS

  • Filter type Horizontal / vertical biphasic separator.
  • Standard and custom designs.
  • Materials Carbon steel / Stainless steel.
  • Flanged connections.
  • Series # 150 to # 1500 ASME B16.5.
  • Bolted / Various types of quick closure.
  • Flat Gaskets / O Rings / Ring Joints.
  • Optional Instrumentation / Skid and platforms / ASME stamp / Insulation / Tracing.

ADVANTAGES

  • 99.9% in solids of 3 microns and droplets of 8 microns regardless of the gas entry conditions.
  • Possibility of achieving efficiencies of 99% in solids and 1 micron droplets with the use of pleated filter media.
  • Various types of closure depending on operating conditions and customer requirements.
  • Design adapted to the specific requirements of the client.
  • Robust yet simple construction for trouble-free operation.
  • Quick and safe filter element replacement without the need for tools.
  • Ability to modify the micron rate or type of bag material without the need to replace the housing.
