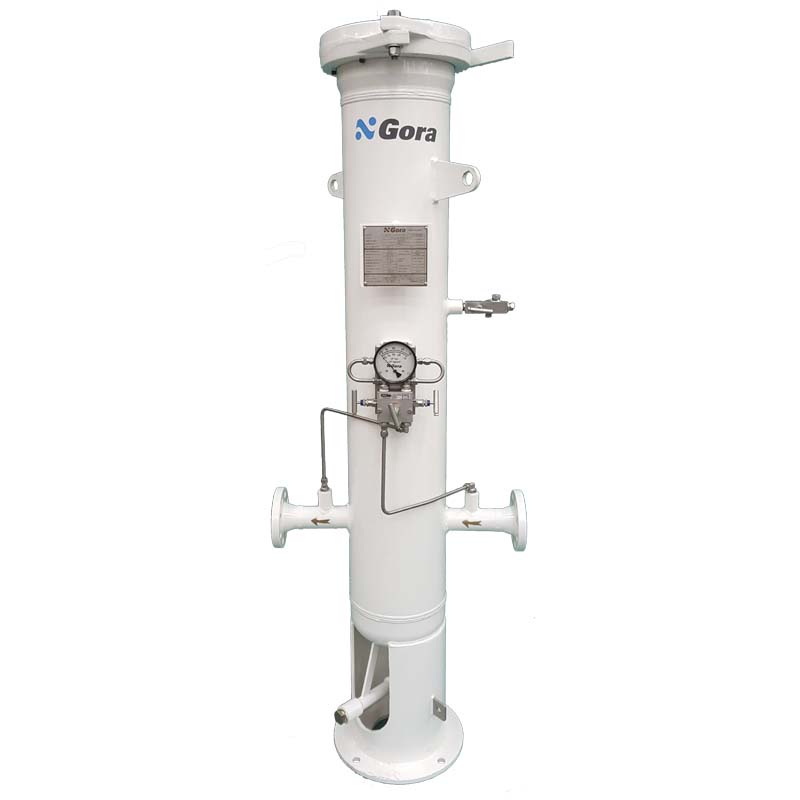

The Dynapack GAP family refers to dust separator filters for natural gas that have been designed to be installed in pipelines, measurement and regulation stations, refineries and any other application where it is necessary to remove solid particles.

The gas enters the housing where an abrupt change in velocity allows the sedimentation of the larger particles. The fluid continues its journey where it meets the dust separating candles. These glass fiber elements retain the finest particles giving a solids free output gas to the user’s specification.

Specially designed to operate in the most severe working conditions they are the best cost-quality ratio option for the processing of large gas flows.

• Filter type Dust separator.
• Standard and custom designs.
• Materials Carbon steel / Stainless steel.
• Flanged connections.
• Series # 150 to # 1500 ASME B16.5.
• Bolted / Various types of quick closure.
• Flat Gaskets / O Rings / Ring Joints.
• Optional Instrumentation / Skid and platforms / ASME stamp / Insulation / Tracing.

• The diversity of filter media used in the construction of the candles enables us to adapt to the most diverse requirements.
• Quick and safe filter element replacement without the need for tools.
• Available in both vertical and horizontal configurations without compromising operating efficiency.
• Efficiency 99.99% up to 1 micron regardless of the gas input conditions.
• Various types of closure depending on operating conditions and customer requirements.
• Design adapted to the specific requirements of the client.
• Robust yet simple construction for trouble-free operation.
• Ability to modify the micron rate or type of bag material without the need to replace the housing.
