Medium efficiency droplet separators.

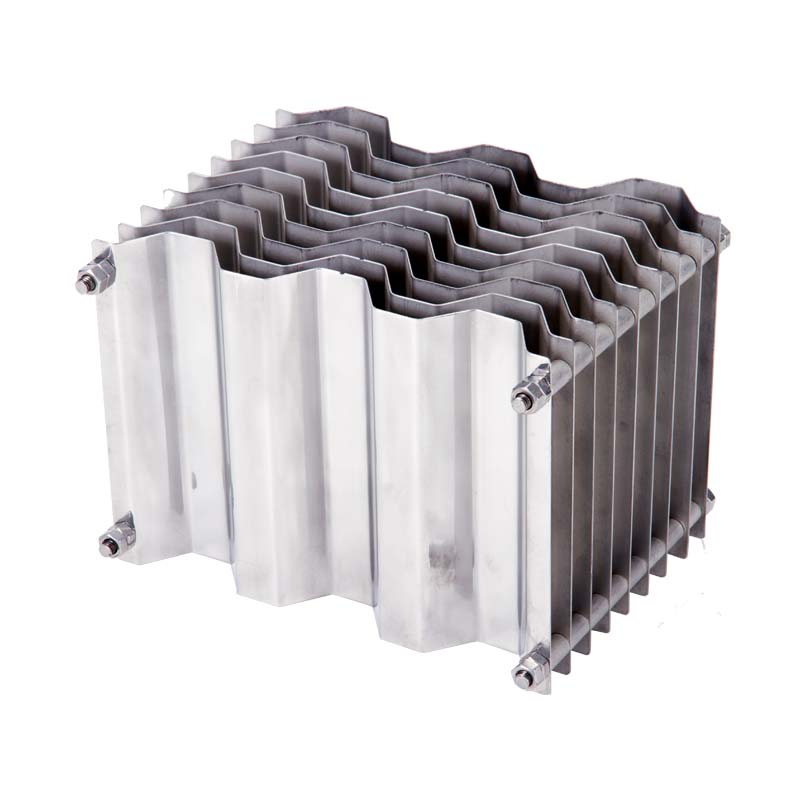

PlatePacks are phase separators (liquid-gas) of medium efficiency. Their construction consists of a set of very closely overlapping corrugated plates that form a sinuous passage for the gas stream.

These separators ensure a low pressure drop and allow operation when the fluid has large amounts of liquid. Unlike other droplet separators, efficiency is reduced when condensates are present in droplets smaller than 20 microns.

These droplet separators can be easily installed in new or existing housings and their pressure drop is so low that operating conditions are not affected.

• Available in 304 / 304L, 316 / 316L stainless steel or carbon steel.
• Constructed in different shapes for greater adaptability.
• Capable of operating with large amounts of condensate.
• Can be used when the fluid has a high solids content.
• Different combinations of construction variables ensure separation efficiencies of up to 99.9% in droplets of 20 microns.
• Considerable reduction in pressure drop
