VanePack
Droplet separators of medium efficiency.

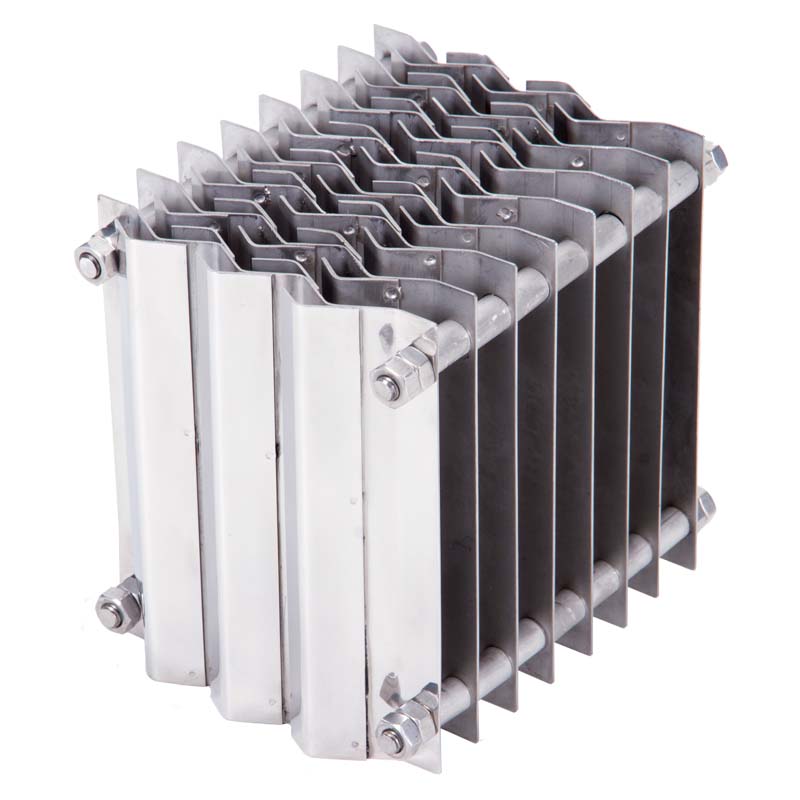

VanePacks are phase separators (liquid-gas) of medium efficiency. Their construction consists of a set of very closely overlapping corrugated plates that form a sinuous passage for the gas stream.
These separators can be built with 1 or 2 pockets per cycle in order to achieve the best ratio between separation efficiency and pressure drop. With correct sizing, these elements can achieve efficiencies of 99% in droplets in the range 10 – 15 microns.
VanePacks can be easily installed in new or existing housings and their pressure drop is so small that it does not change the operating conditions.
CHARACTERISTICS
- Constructed with single or double pocket.
- Available in stainless steel 304 / 304L, 316 / 316L or carbon steel.
- Constructed in different shapes for greater adaptability.
- Different combinations of construction variables ensure separation efficiencies of up to 99% in 10 micron droplets.
- Considerable reduction in pressure drop
